Getting started

Overview

NVIDIA Data Loading Library (DALI) is a collection of highly optimized building blocks and an execution engine that accelerates the data pipeline for computer vision deep learning applications.

Input and augmentation pipelines provided by Deep Learning frameworks fit typically into one of two categories:

  • fast, but inflexible - written in C++, they are exposed as a single monolithic Python object with very specific set and ordering of operations it provides
  • slow, but flexible - set of building blocks written in either C++ or Python, that can be used to compose arbitrary data pipelines that end up being slow. One of the biggest overheads for this type of data pipelines is Global Interpreter Lock (GIL) in Python. This forces developers to use multiprocessing, complicating the design of efficient input pipelines.

DALI stands out by providing both performance and flexibility of accelerating different data pipelines. It achieves that by exposing optimized building blocks which are executed using simple and efficient engine, and enabling offloading of operations to GPU (thus enabling scaling to multi-GPU systems).

It is a single library, that can be easily integrated into different deep learning training and inference applications.

Pipeline

The most important type in DALI is the Pipeline. It contains all the necessary information and multiple functions related to defining, building and running the pipeline. In order to make our own input and augmentation pipeline, we will make subclasses of it.

In [1]:
from nvidia.dali.pipeline import Pipeline
help(Pipeline)
Help on class Pipeline in module dali.pipeline:

class Pipeline(__builtin__.object)
 |  Methods defined here:
 |
 |  __init__(self, batch_size, num_threads, device_id, seed=-1, exec_pipelined=True, exec_async=True, bytes_per_sample=0, set_affinity=False, max_streams=-1)
 |
 |  build(self)
 |
 |  define_graph(self)
 |      # defined by the user to construct their graph of operations.
 |      # this returns a list of output TensorReferences that we can
 |      # trace back to add them to the graph
 |
 |  deserialize_and_build(self, serialized_pipeline)
 |
 |  epoch_size(self, name=None)
 |
 |  feed_input(self, ref, data)
 |
 |  iter_setup(self)
 |      # Can be overriden by user-defined pipeline to perform any
 |      # needed setup for each iteration, e.g. feed in input data
 |
 |  outputs(self)
 |
 |  run(self)
 |
 |  run_cpu(self)
 |
 |  run_gpu(self)
 |
 |  save_graph_to_dot_file(self, filename)
 |
 |  serialize(self)
 |
 |  ----------------------------------------------------------------------
 |  Data descriptors defined here:
 |
 |  __dict__
 |      dictionary for instance variables (if defined)
 |
 |  __weakref__
 |      list of weak references to the object (if defined)
 |
 |  batch_size
 |
 |  device_id
 |
 |  num_threads

Defining the pipeline

Let us start with defining a very simple pipeline for classifier determining whether a picture contains dog or a cat.

We prepared a directory structure containing picture of dogs and cats:

In [2]:
import os
import fnmatch

for root, dir, files in os.walk("images"):
        depth = root.count('/')
        ret = ""
        if depth > 0:
            ret += "  " * (depth - 1) + "|-"
        print (ret + root)
        for items in fnmatch.filter(files, "*"):
                print (" " * len(ret) + "|-" + items)
images
|-images/dog
|-images/kitten

Our simple pipeline will read images from this directory, decode them and return (image, label) pairs.

In [3]:
import nvidia.dali.ops as ops
import nvidia.dali.types as types

image_dir = "images"
batch_size = 8

class SimplePipeline(Pipeline):
    def __init__(self, batch_size, num_threads, device_id):
        super(SimplePipeline, self).__init__(batch_size, num_threads, device_id, seed = 12)
        self.input = ops.FileReader(file_root = image_dir)
        # instead of path to file directory file with pairs image_name image_label_value can be provided
        # self.input = ops.FileReader(file_root = image_dir, file_list = image_dir + '/file_list.txt')
        self.decode = ops.HostDecoder(output_type = types.RGB)

    def define_graph(self):
        jpegs, labels = self.input()
        images = self.decode(jpegs)
        return (images, labels)

The SimplePipeline class is a subclass of dali.pipeline.Pipeline, which provides most of the methods to create and launch a pipeline. The only 2 methods that we need to implement is the constructor and define_graph function.

In the constructor we first call our superclass constructor, in order to set global parameters of the pipeline:

  • batch size,
  • number of threads used to perform computation on the CPU,
  • which GPU device to use (SimplePipeline does not yet use GPU for compute though)
  • seed for random number generation

In the constructor we also define member variables of our SimplePipeline class as operations defined in dali.ops module:

  • FileReader - traverses the directory and returns pairs of (encoded image, label)
  • HostDecoder - takes an encoded image input and outputs decoded RGB image

In the define_graph function we define the actual flow of computation:

jpegs, labels = self.input()

uses our input operation to create jpegs (encoded images) and labels.

images = self.decode(jpegs)

Next, we use the decode operation to create images (decoded RGB images).

return (images, labels)

Finally, we specify which of the intermediate variables should be returned as outputs of the pipeline.

Building the pipeline

In order to use our SimplePipeline, we need to build it. This is achieved by calling build function.

In [4]:
pipe = SimplePipeline(batch_size, 1, 0)
pipe.build()

Running the pipeline

After the pipeline is built, we can run it to get the batch of results.

In [5]:
pipe_out = pipe.run()
print(pipe_out)
[<dali.backend_impl.TensorListCPU object at 0x7f01677999d0>, <dali.backend_impl.TensorListCPU object at 0x7f01676dd228>]

The output of the pipeline, which we saved to pipe_out variable, is a list of 2 elements (as expected - we specified 2 outputs in define_graph function in SimplePipeline class). Both of these elements are TensorListCPU objects - each contains a list of tensors on the CPU.

In order to show the results (just for debugging purposes - during the actual training we would not do that step, as it would make our batch of images do a round trip from GPU to CPU and back) we can send our data form DALI’s Tensor to NumPy array. Not every TensorList can be accessed that way though - TensorList is more general than NumPy array and can hold tensors with different shapes. In order to check whether we can send it to NumPy directly, we can call the is_dense_tensor function of TensorList

In [6]:
images, labels = pipe_out
print("Images is_dense_tensor: " + str(images.is_dense_tensor()))
print("Labels is_dense_tensor: " + str(labels.is_dense_tensor()))
Images is_dense_tensor: False
Labels is_dense_tensor: True

As it turns out, TensorList containing labels can be represented by a tensor, while the TensorList containing images cannot.

Let us see, what is the shape and contents of returned labels.

In [7]:
import numpy as np

labels_tensor = labels.as_tensor()

print (labels_tensor.shape())
print (np.array(labels_tensor))
[8L, 1L]
[[0]
 [0]
 [0]
 [0]
 [0]
 [0]
 [0]
 [0]]

In order to see the images, we will need to loop over all tensors contained in TensorList, accessed with its at method.

In [8]:
from __future__ import division
import matplotlib.gridspec as gridspec
import matplotlib.pyplot as plt
%matplotlib inline

def show_images(image_batch):
    columns = 4
    rows = (batch_size + 1) // (columns)
    fig = plt.figure(figsize = (32,(32 // columns) * rows))
    gs = gridspec.GridSpec(rows, columns)
    for j in range(rows*columns):
        plt.subplot(gs[j])
        plt.axis("off")
        plt.imshow(image_batch.at(j))
In [9]:
show_images(images)
../_images/examples_getting_started_18_0.png

Adding augmentations

Random shuffle

As we can see from the example above, the first batch of images returned by our pipeline contains only dogs. That is because we did not shuffle our dataset, and so FileReader returns images in order in which it encountered them while traversing the directory structure.

Let us make a new pipeline, that will change that.

In [10]:
class ShuffledSimplePipeline(Pipeline):
    def __init__(self, batch_size, num_threads, device_id):
        super(ShuffledSimplePipeline, self).__init__(batch_size, num_threads, device_id, seed = 12)
        self.input = ops.FileReader(file_root = image_dir, random_shuffle = True, initial_fill = 21)
        self.decode = ops.HostDecoder(output_type = types.RGB)

    def define_graph(self):
        jpegs, labels = self.input()
        images = self.decode(jpegs)
        return (images, labels)

We made 2 changes to the SimplePipeline to obtain ShuffledSimplePipeline - we added 2 parameters to the FileReader operation

  • random_shuffle enables shuffling of images in the reader. Shuffling is performed using a buffer of images read from disk. When reader is asked to provide a next image, it randomly selects an image from the buffer, outputs it and immediately replaces that spot in a buffer with a freshly read image.
  • initial_fill sets the capacity of the buffer. The default value of this parameter (1000), well suited for datasets containing thousands of examples, is too big for our very small dataset, which contains only 21 images. This could result in frequent duplicates in the returned batch. That is why in this example we set it to the size of our dataset.

Let us test the result of this modification.

In [11]:
pipe = ShuffledSimplePipeline(batch_size, 1, 0)
pipe.build()
In [12]:
pipe_out = pipe.run()
images, labels = pipe_out
show_images(images)
../_images/examples_getting_started_23_0.png

Now the images returned by the pipeline are shuffled properly.

Augmentations

DALI can not only read images from disk and batch them into tensors, it can also perform various augmentations on those images to improve Deep Learning training results.

One example of such augmentations is rotation. Let us make a new pipeline, which rotates the images before outputting them.

In [13]:
class RotatedSimplePipeline(Pipeline):
    def __init__(self, batch_size, num_threads, device_id):
        super(RotatedSimplePipeline, self).__init__(batch_size, num_threads, device_id, seed = 12)
        self.input = ops.FileReader(file_root = image_dir, random_shuffle = True, initial_fill = 21)
        self.decode = ops.HostDecoder(output_type = types.RGB)
        self.rotate = ops.Rotate(angle = 10.0)

    def define_graph(self):
        jpegs, labels = self.input()
        images = self.decode(jpegs)
        rotated_images = self.rotate(images)
        return (rotated_images, labels)

To do that, we added a new operation to our pipeline: dali.ops.Rotate. To obtain information on required and optional arguments of any operation provided by DALI, we can use help function.

In [14]:
help(ops.Rotate)
Help on class Rotate in module dali.ops:

class Rotate(__builtin__.object)
 |  # Rotate
 |
 |  Overview
 |  --------
 |  Rotate the image
 |
 |  Required Parameters
 |  -------------------
 |   - `angle` : `float` or `float tensor`
 |          Rotation angle
 |
 |
 |  Optional Parameters
 |  -------------------
 |   - `fill_value` : `float`
 |        Color value used for padding pixels. (default value: `0.000000`)
 |   - `interp_type` : `dali.types.DALIInterpType`
 |        Type of interpolation used (default value: `INTERP_NN`)
 |   - `mask` : `int` or `int tensor`
 |        Whether to apply this augmentation to the input image.
 |          0 - do not apply this transformation
 |          1 - apply this transformation
 |           (default value: `1`)
 |
 |  Methods defined here:
 |
 |  __call__(self, *inputs, **kwargs)
 |
 |  __init__(self, **kwargs)
 |
 |  ----------------------------------------------------------------------
 |  Data descriptors defined here:
 |
 |  __dict__
 |      dictionary for instance variables (if defined)
 |
 |  __weakref__
 |      list of weak references to the object (if defined)
 |
 |  device
 |
 |  schema
 |
 |  spec

As we can see, Rotate can take multiple arguments, but only one of them, angle, is required - it tells the operator how much it should rotate images.

Let us test the newly created pipeline:

In [15]:
pipe = RotatedSimplePipeline(batch_size, 1, 0)
pipe.build()
In [16]:
pipe_out = pipe.run()
images, labels = pipe_out
show_images(images)

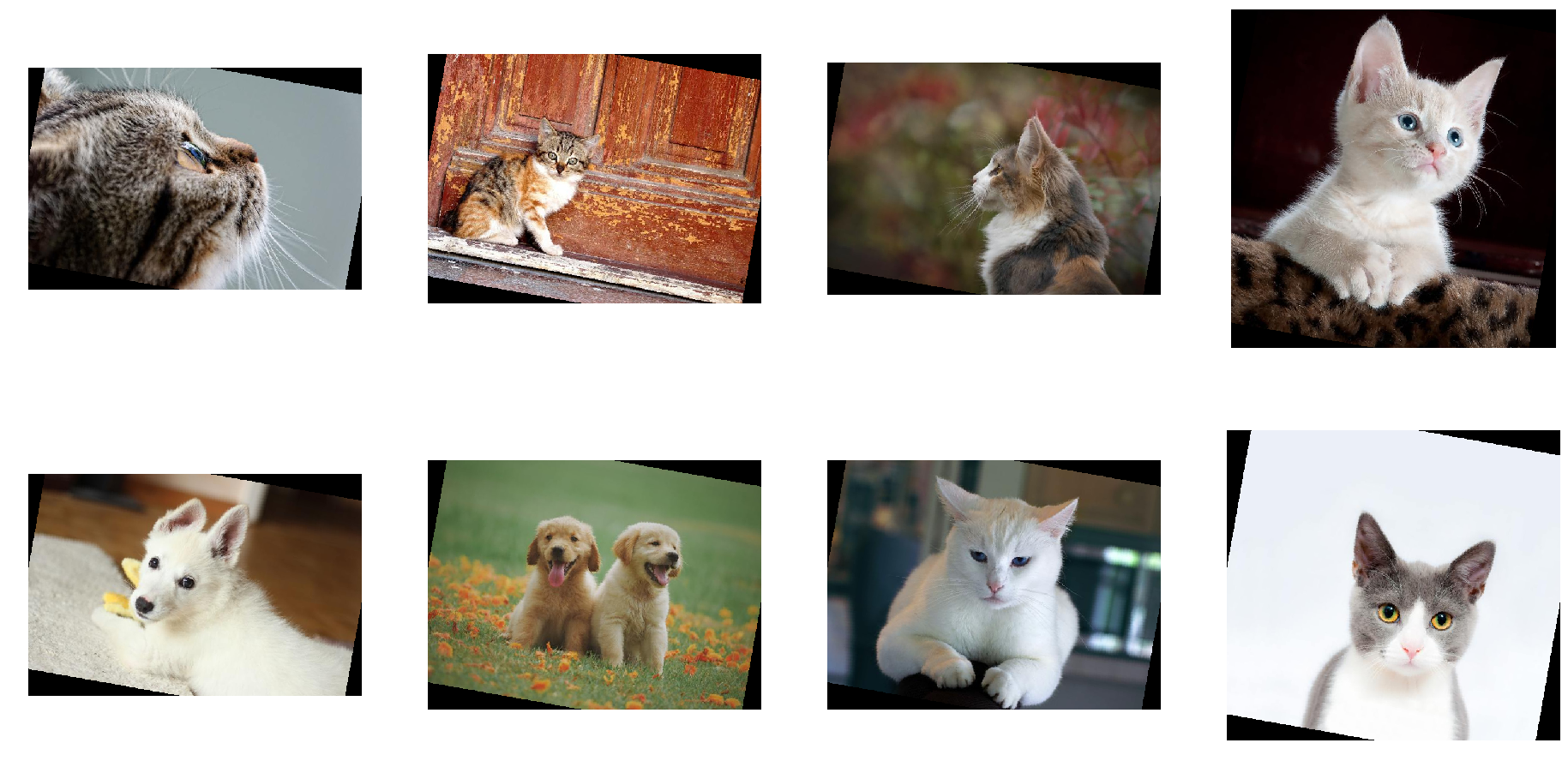

../_images/examples_getting_started_30_0.png

Tensors as arguments and Random Number Generation

Rotating every image by 10 degrees is not that interesting. To make a meaningful augmentation, we would like an operator that rotates our images by a random angle in a given range.

The help output for Rotate operation tells us, that angle parameter can accept float or float tensor types of values. The second option, float tensor, enables us to feed the operator with different rotation angles for every image, via a tensor produced by other support operation.

Random number generators are examples of support operations that one can use with DALI. Let us use dali.ops.Uniform to make a pipeline with random rotation.

In [17]:
class RandomRotatedSimplePipeline(Pipeline):
    def __init__(self, batch_size, num_threads, device_id):
        super(RandomRotatedSimplePipeline, self).__init__(batch_size, num_threads, device_id, seed = 12)
        self.input = ops.FileReader(file_root = image_dir, random_shuffle = True, initial_fill = 21)
        self.decode = ops.HostDecoder(output_type = types.RGB)
        self.rotate = ops.Rotate()
        self.rng = ops.Uniform(range = (-10.0, 10.0))

    def define_graph(self):
        jpegs, labels = self.input()
        images = self.decode(jpegs)
        angle = self.rng()
        rotated_images = self.rotate(images, angle = angle)
        return (rotated_images, labels)

This time, instead of providing a fixed value for the angle argument in the constructor, we set it to the output of the dali.ops.Uniform operator.

Let us check the result:

In [18]:
pipe = RandomRotatedSimplePipeline(batch_size, 1, 0)
pipe.build()
In [19]:
pipe_out = pipe.run()
images, labels = pipe_out
show_images(images)
../_images/examples_getting_started_35_0.png

This time, the rotation angle is randomly selected from a value range.

GPU acceleration

DALI offers access to GPU accelerated operators, that can increase the speed of the input and augmentation pipeline and let it scale to multi-GPU systems.

Copying tensors to GPU

Let us modify the previous example of the RandomRotatedSimplePipeline to use GPU for rotation operator.

In [20]:
class RandomRotatedGPUPipeline(Pipeline):
    def __init__(self, batch_size, num_threads, device_id):
        super(RandomRotatedGPUPipeline, self).__init__(batch_size, num_threads, device_id, seed = 12)
        self.input = ops.FileReader(file_root = image_dir, random_shuffle = True, initial_fill = 21)
        self.decode = ops.HostDecoder(output_type = types.RGB)
        self.rotate = ops.Rotate(device = "gpu")
        self.rng = ops.Uniform(range = (-10.0, 10.0))

    def define_graph(self):
        jpegs, labels = self.input()
        images = self.decode(jpegs)
        angle = self.rng()
        rotated_images = self.rotate(images.gpu(), angle = angle)
        return (rotated_images, labels)

In order to tell DALI that we want to use GPU, we needed to make 2 changes to the pipeline:

  • we added a device = "gpu" parameter to the Rotate operation
  • we changed input to the rotate from images, which is a tensor on the CPU, to images.gpu() which copies it to the GPU
In [21]:
pipe = RandomRotatedGPUPipeline(batch_size, 1, 0)
pipe.build()
In [22]:
pipe_out = pipe.run()
print(pipe_out)
[<dali.backend_impl.TensorListGPU object at 0x7f01676dd0d8>, <dali.backend_impl.TensorListCPU object at 0x7f00cc8d0a08>]

pipe_out still contains 2 TensorLists, but this time the first output, result of the Rotate operation, is on the GPU. We cannot access contents of TensorListGPU directly from the CPU, so in order to visualize the result we need to copy it to the CPU by using asCPU method.

In [23]:
images, labels = pipe_out
show_images(images.asCPU())
../_images/examples_getting_started_42_0.png

Hybrid decoding and nvJPEG

Sometimes, especially for higher resolution images, even decoding of JPEG images may become a bottleneck for training. To speed up cases like this, nvJPEG library was developed. It uses hybrid approach to decoding - it splits the workload between CPU and GPU to achieve higher throughput.

In order to use nvJPEG library, we will change HostDecoder to nvJPEGDecoder in our pipeline.

In [24]:
class nvJPEGPipeline(Pipeline):
    def __init__(self, batch_size, num_threads, device_id):
        super(nvJPEGPipeline, self).__init__(batch_size, num_threads, device_id, seed = 12)
        self.input = ops.FileReader(file_root = image_dir, random_shuffle = True, initial_fill = 21)
        self.decode = ops.nvJPEGDecoder(device = "mixed", output_type = types.RGB)

    def define_graph(self):
        jpegs, labels = self.input()
        images = self.decode(jpegs)
        # images are on the GPU
        return (images, labels)

nvJPEGDecoder, since it uses hybrid approach of computation that employs both CPU and GPU, has a special value for device parameter - mixed. This means that it accepts CPU inputs, but returns GPU outputs. That is why images object returned from the pipeline is of type TensorListGPU.

In [25]:
pipe = nvJPEGPipeline(batch_size, 1, 0)
pipe.build()
In [26]:
pipe_out = pipe.run()
images, labels = pipe_out
show_images(images.asCPU())
../_images/examples_getting_started_47_0.png

Let us compare the speed of HostDecoder and nvJPEGDecoder by measuring speed of ShuffledSimplePipeline and nvJPEGPipeline with 4 CPU threads.

In [27]:
from timeit import default_timer as timer

test_batch_size = 64

def speedtest(pipeclass, batch, n_threads):
    pipe = pipeclass(batch, n_threads, 0)
    pipe.build()
    # warmup
    for i in range(5):
        pipe.run()
    # test
    n_test = 20
    t_start = timer()
    for i in range(n_test):
        pipe.run()
    t = timer() - t_start
    print("Speed: {} imgs/s".format((n_test * batch)/t))
In [28]:
speedtest(ShuffledSimplePipeline, test_batch_size, 4)
Speed: 2429.65393771 imgs/s
In [29]:
speedtest(nvJPEGPipeline, test_batch_size, 4)
Speed: 5228.28776715 imgs/s
